316L Aliquam chalybeis angulus generis et 3 via pila valvae port

Home / Products / Steel Ball Valvulae / 316L Aliquam chalybeis angulus generis et 3 via pila valvae port

316L Aliquam chalybeis angulus generis et 3 via pila valvae port

Hic angulus globus valvae valvae corporis maxime consistit, valvae pila, truncus valvae, annulus signans, operculum valvae, et manubrium. Valvae L informibus corpus permittit ut in positionibus angulis pipelines efficientes, reducendo longitudinem pipeline et numerum flectit. Tres viae pilae valvae notae sunt designationis canalis interni T informibus, ut fluidum diversum, bus vel mutandi. Tres valvulae pilae viis significanter numerum valvularum in designatione pipeline minuunt, institutionem summittentes ac difficultatem sustentationem. Globus valvae manually trunco ​​valvae rotante operatur, globum valvae 90° gyrari causans, aligning internum per foramen valvae pilae cum pipelino ad effectum fluxum fluidi vel mutandi. Dum valvulae pilae angulus per 90° curvationem pipelineam consequi possunt, valvulae tres pilae valvulae fluidae distringere et operationes bus valvae in diversis angulis versando.

  • Descriptio
  • Contact Us

Dextra-angulus pila valvae

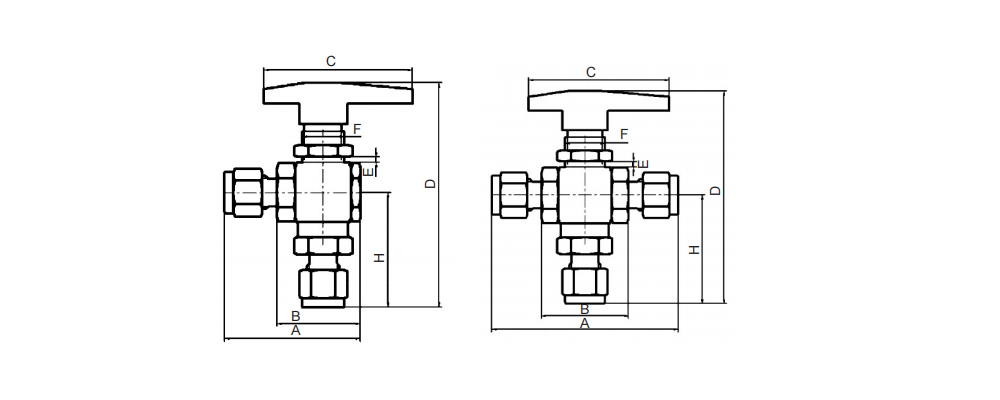

Specifications

A

B

D1 interiorem foraminis per-foraminis

C

D

H

E

F

BVL-010D

1/8LOK

44.5

28

2.4

50

74

37

5

14

BVL

02OD

1/4LOK

45.8

28

5

50

75.7

38.7

5

14

BVL

03OD

3/8LOK

47.6

28

5

50

77.7

40.7

5

14

BVL

04OD

1/2LOK

59.2

37

10

84

102

54.7

5

19

BVL-

06OD小体

3/4LOK

62.4

40

10

84

108

60.4

5

19

BVL

3OD

3mmLOK

44

28

2.4

50

74

37

5

14

BVL

6OD

6mmLOK

45.8

28

5

50

75.7

38.7

5

14

BVL

8OD

8mmLOK

46.7

28

5

50

76.7

39.7

5

14

BVL-100D

10mmLOK

47.6

28

5

50

77.7

40.7

5

14

BVL

12OD

12mmLOK

59.8

37

10

84

102

54.7

5

19

BVL

14OD

14mmLOK

59.8

37

10

84

101.6

54.2

5

19

BVL

01F

1/8

35.5

1

5

50

66.5

29.5

5

14

BVL

02F

1/4

39.5

1

5

50

69.5

32.5

5

14

BVL

03F

3/8

44.5

7

10

84

90.5

44.5

5

19

BVL-04F

1/2

45.5

/

10

84

91.5

45.5

5

19

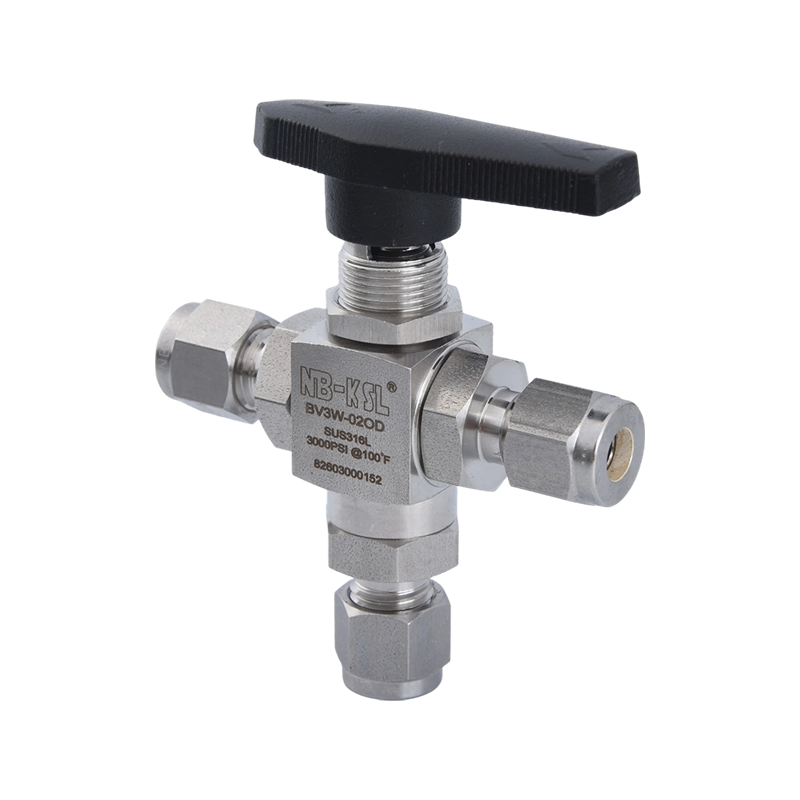

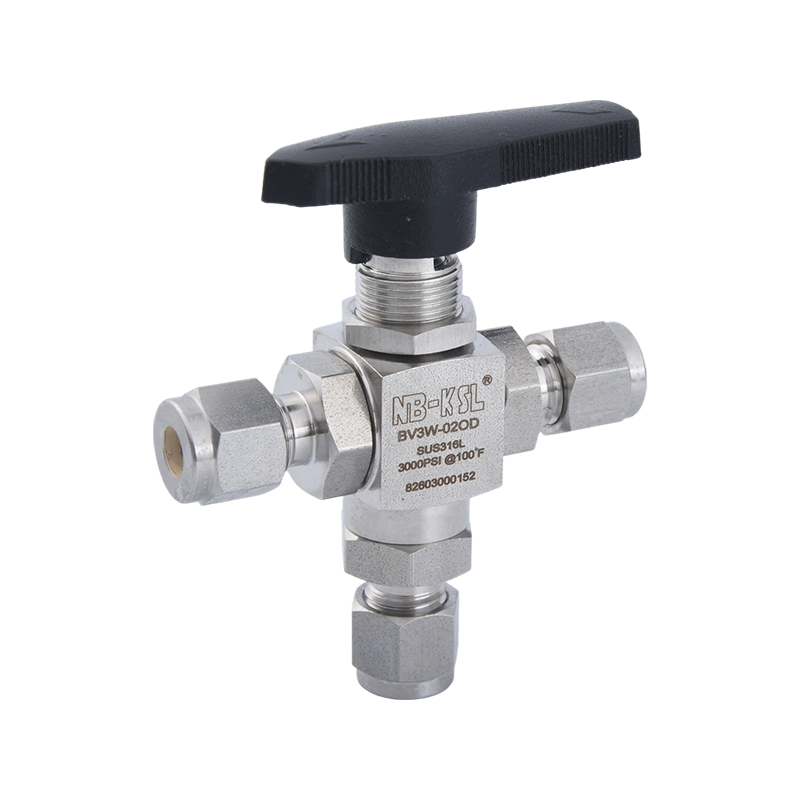

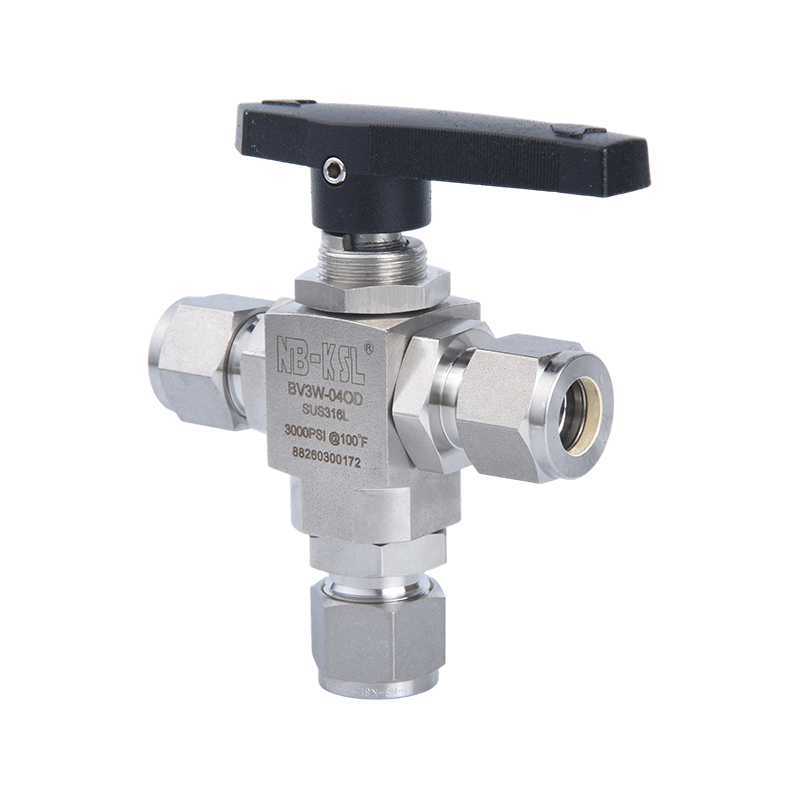

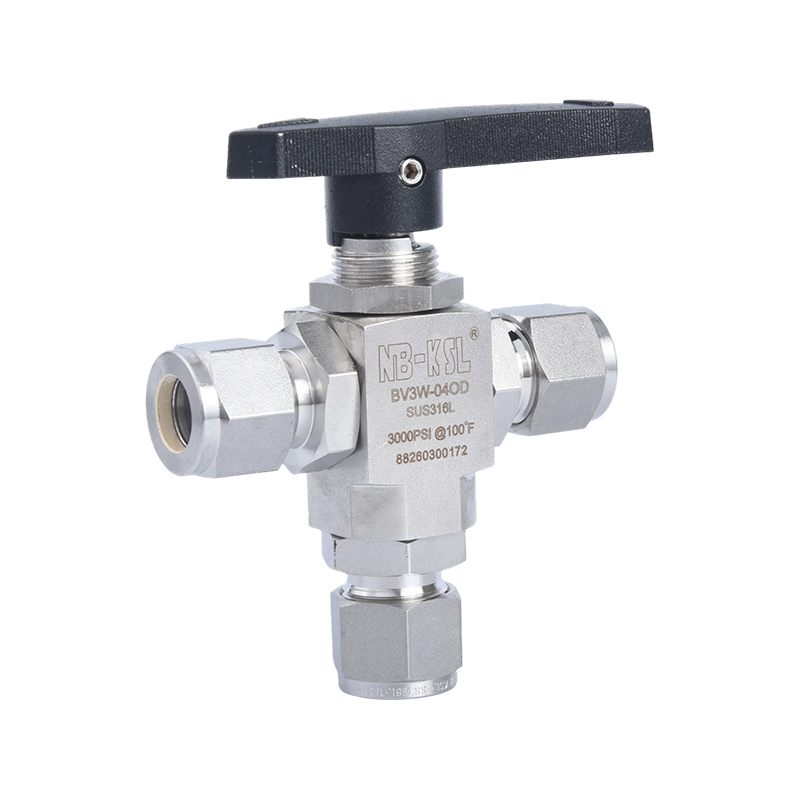

Tres pila-modo valvae

Specifications

A

B

D1 interiorem foraminis per-foraminis

C

D

H

E

F

BV3W-010D

1/8LOK

63

31

2.4

50

74

37

5

14

BV3W 02OD

1/4LOK

66.4

31

5

50

75.7

38.7

5

14

BV3W-03OD

3/8LOK

70.5

31

5

50

77.7

40.7

5

14

BV3W-040D

1/2LOK

86

40

10

84

102

54.7

5

19

BV3W 06OD

3/4LOK

91

46

10

84

108

60.4

5

19

BV3W 3OD

3mmLOK

63

31

2.4

50

74

37

5

14

BV3W 4OD

4mmLOK

63

31

3

50

74

37

5

14

BV3W-6OD

6mmLOK

66.4

31

5

50

75.7

38.7

5

14

BV3W 8OD

8mmLOK

68.4

31

5

50

76.7

39.7

5

14

BV3W-100D

10mmLOK

70.5

31

5

50

77.7

40.7

5

14

BV3W 12OD

12mmLOK

86

40

10

84

102

54.7

5

19

BV3W-140D

14mmLOK

85

40

10

84

101.6

54.2

5

19

BV3W-160D

16mmLOK

85

40

10

84

101.6

54.2

5

19

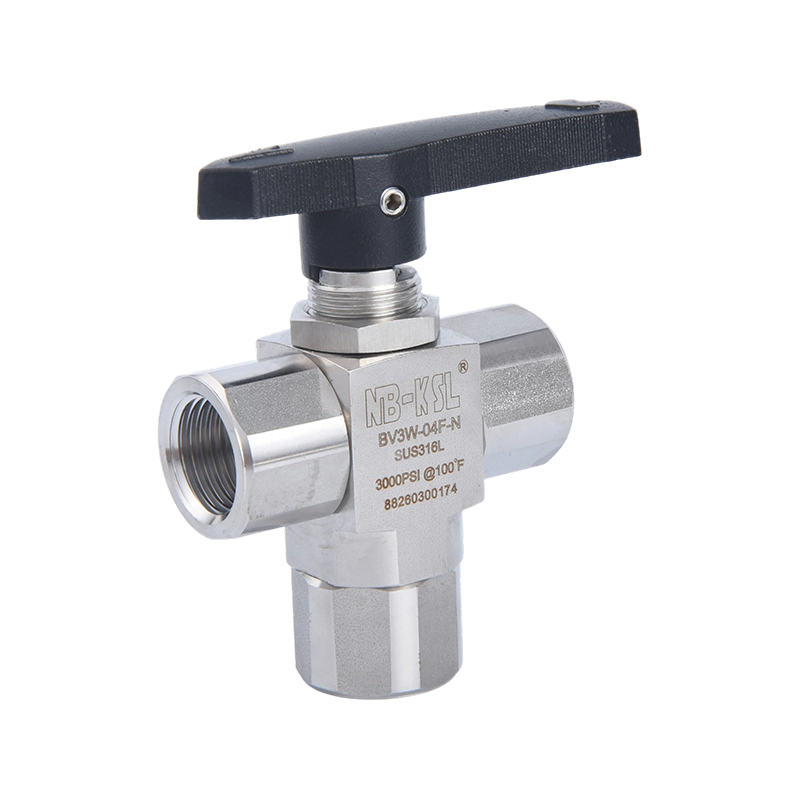

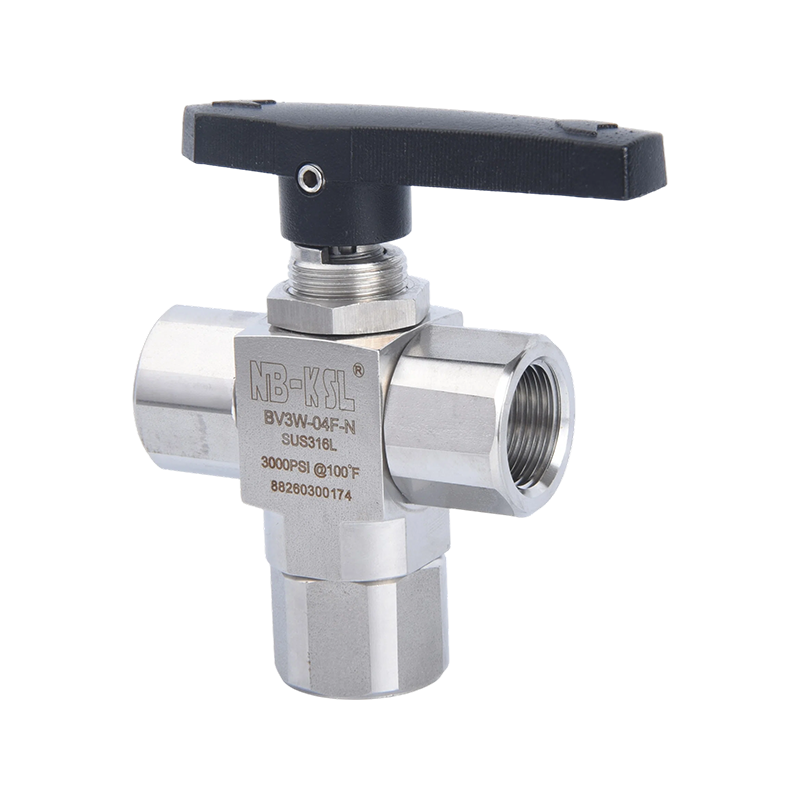

Tres pila-modo valvae

NPT/PT

A

B

D1 interiorem foraminis per-foraminis

C

D

H

E

F

BV3W-01F

1/8

46

/

5

50

66.5

29.5

5

14

BV3W-02F

1/4

54

1

5

50

69.5

32.5

5

14

BV3W-03F

3/8

64

1

10

84

90.5

44.5

5

19

BV3W-04F

1/2

66

/

10

84

91.5

45.5

5

19
