316L Compressio Steel per laminam rectam connexionem aptam

Home / Products / Diver Tube Fittings / Tubus ad Union / 316L Compressio Steel per laminam rectam connexionem aptam

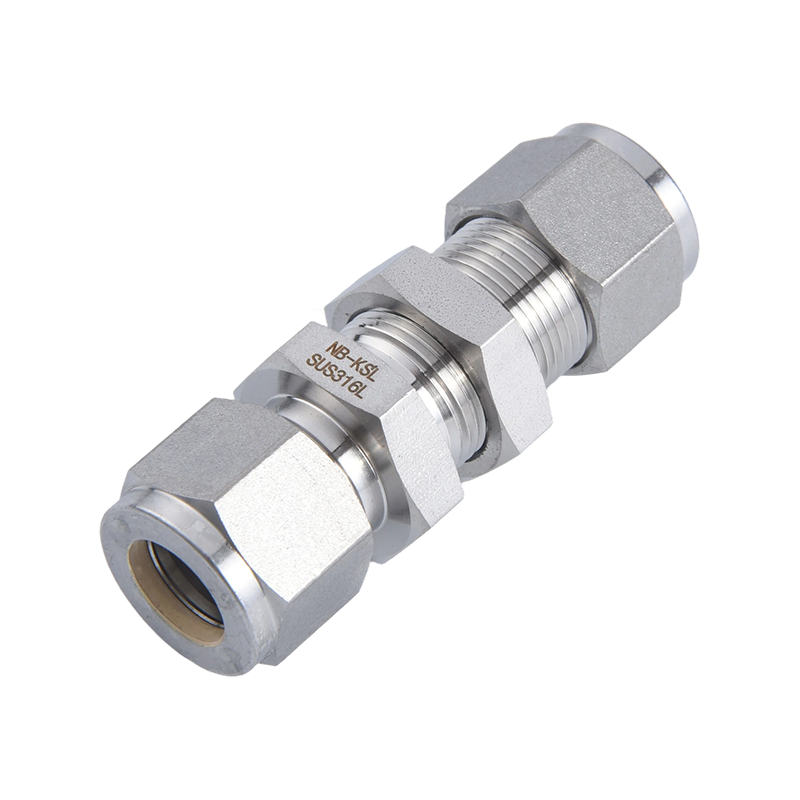

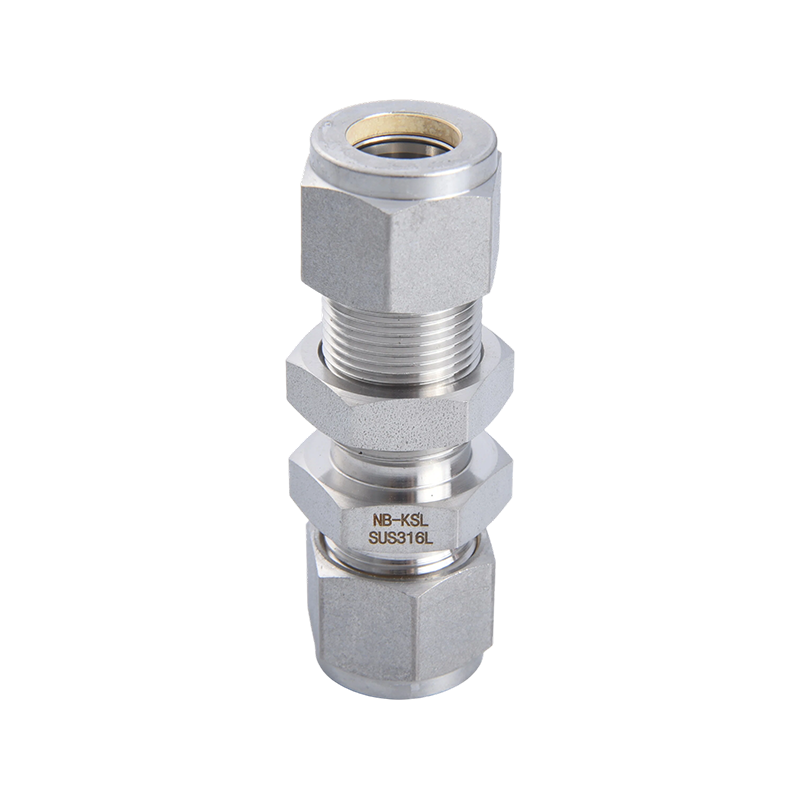

316L Compressio Steel per laminam rectam connexionem aptam

316L Immaculata chalybea mole capitis directa iunctio critica componentis ad nexus "solatas" faciliores destinata est, permittens lineas fluidas secure per tabulas, muros clausuras, vel scopulos transire.

1. Superior Panel Fixing et Obsignans
Mechanica stabilitas: Instructus cum nut speciali oneris mole-capitis, iungo firmiter in tabulam vel scrinium parietem occlusum esse potest. Hoc efficit ut Tubing, immobile ac securum maneat, etiam sub ingenti tremore.
Praesidium solitudo: Permittit lineas fluidas ut varias pressiones zonae, areas ancipitia, vel inhabitationes tutelae, servata corporis integritate partitionis, tuto percurrat.

2. Eximia Weatherability de 316L Material
Corrosio intergranuaria Resistentia: Ad vexillum 316, contentum carbo carbonis ultra-humilis 316L resistentiam praebet superiorem corrosionem, praesertim post expositionem ad altas temperaturas vel glutino.
Adaptabilitas Extrema Environment: Sive in salsis elisi suggesti littoris sive vapores acidici subtilis plantae chemicae, vitam eximie longam servitutem praebet.

3 Summus Pressura Airtight Geminus Ferrule Connection
Metallum-ad-Metal Sigillum: Secundum classicum duplicem ferruleum designationem, certas obsignationis observantias in utraque tabulae praebet. Typice aestimatur pro pressionibus usque ad 6000 psi.
Pressura Pulsus mollitiae: Structura est subtilitas machinata ad trahendum systema pressionis spicarum et impulsus fluidorum, curans interfaciem remanente libero libero.

4. Versatility et Otium institutionis
Extensa Thread Design: Moles capitis sectionis lineamenta filo elongato longitudinis ad crassitudines tabulae varias accommodate, inter laminas ferreas immaculatas, tabulas plasticas, vel clausuram electricam parietum.
Nulla Welding requisita: Connexio mere mechanica, institutionem tantum clavis requirit. Necessitas "calidi operis" removet, faciens id specimen zonarum explosionis-probationis vel retrofittionis in-situm.

5. Praeclara Internus munditia
Smooth flow Path: Constans internus bores minimizes pressionem guttatim fluidum per panel transit. Pro semiconductor vel instrumento analytico industries, EP (Electropolishing) gradus praesto sunt ne contagione crucis.

Contact Us Contact Us
PREV：316L Compressio Steel connexio qua- modo decet iungo DEINDE：Proximum productum non
  • Descriptio
  • Contact Us

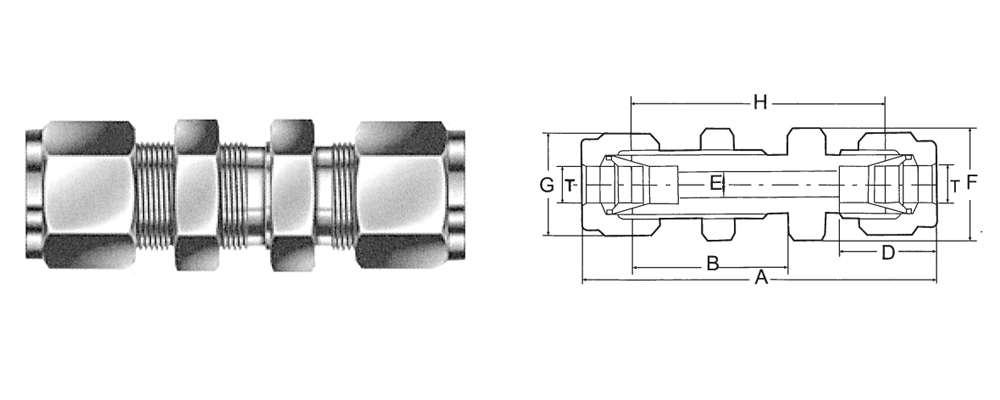

(METRIC)

CATALOGUS NUMBER

TUBE O.D.

A

B

D

E

F

G

H

TABULA CAULLAE MENSURA

MAX TABULA CRASSUS

BU-3-0

3

52.1

24.6

13.5

2.4

12

12

38.1

8.3

11.2

BU-4-0

4

53.8

25.4

13.7

3

14

12

40.4

9.9

11.2

BU-6-0

6

58.5

26.2

15.8

4.8

16

14

42.9

11.5

102

BU-8-0

8

61.4

28.6

16.7

6.4

19

16

46

13.1

11.2

BU-10-0

10

63.7

29.4

19.6

7.9

22

19

48.5

16.3

11.2

BU-12-0

12

72.4

31.8

23.8

9.5

24

22

50.8

19.5

12.7

BU-14-0

14

73.9

32.5

24.8

11.1

27

27

52.3

22.8

12.7

BU-15-0

15

73.1

32.5

24.4

11.9

27

27

52.3

22.8

12.7

BU-16-0

16

73.1

32.5

24.4

12.7

27

27

52.3

22.8

12.7

BU-18-0

18

80.3

37.3

24.8

15.1

30

30

58.7

26

16.8

BU-20-0

20

85.3

42.9

25.5

15.9

35

32

64.3

29

23.9

BU-25-0

25

96.8

45.2

31.7

21.8

40

38

71.4

33.7

19


(FRACTIONAL)

BU-01-0 1/8 53.1 24.6 14 2.4 12 12 38.1 8.3 11.2
BU-02-0 1/4 58.5 26.2 15.8 4.8 16 14 42.9 11.5 102
BU-03-0 3/8 62.7 29.5 19.6 7.1 19 17 47.5 14.7 11.2
BU-04-0 1/2 71.2 31.8 23.4 10.4 24 22 50.8 19.5 12.7
BU-05-0 5/8 73.1 32.5 24.4 12.7 27 27 52.3 22.8 12.7
BU-06-0 3/4 79.5 37.3 24.4 15.7 30 30 58.7 26 16.8
BU-08-0 1" 96.8 45.2 31.7 22.4 40 38 71.4 33.7 19
