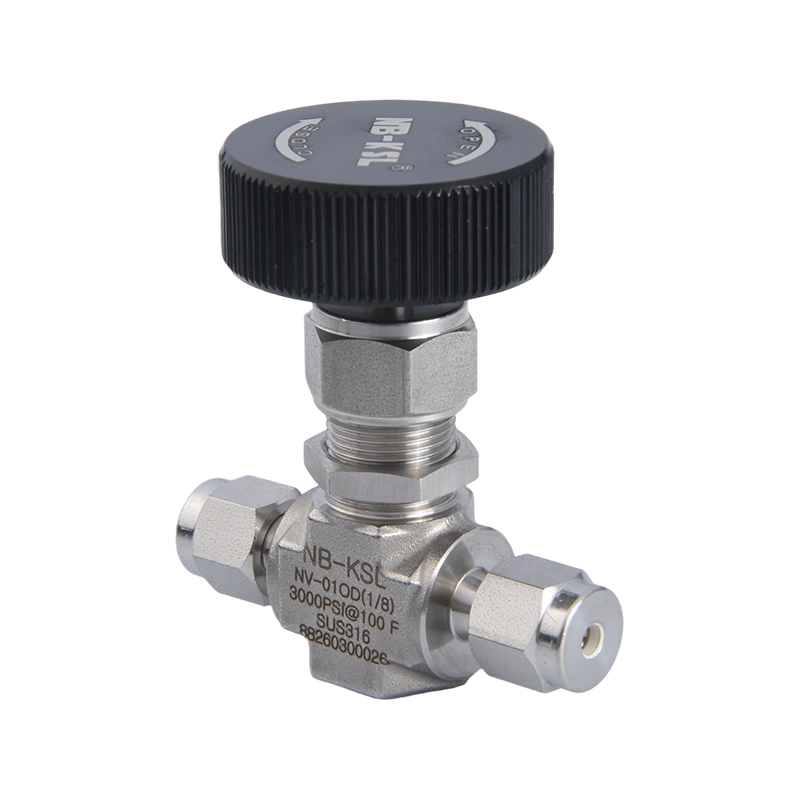

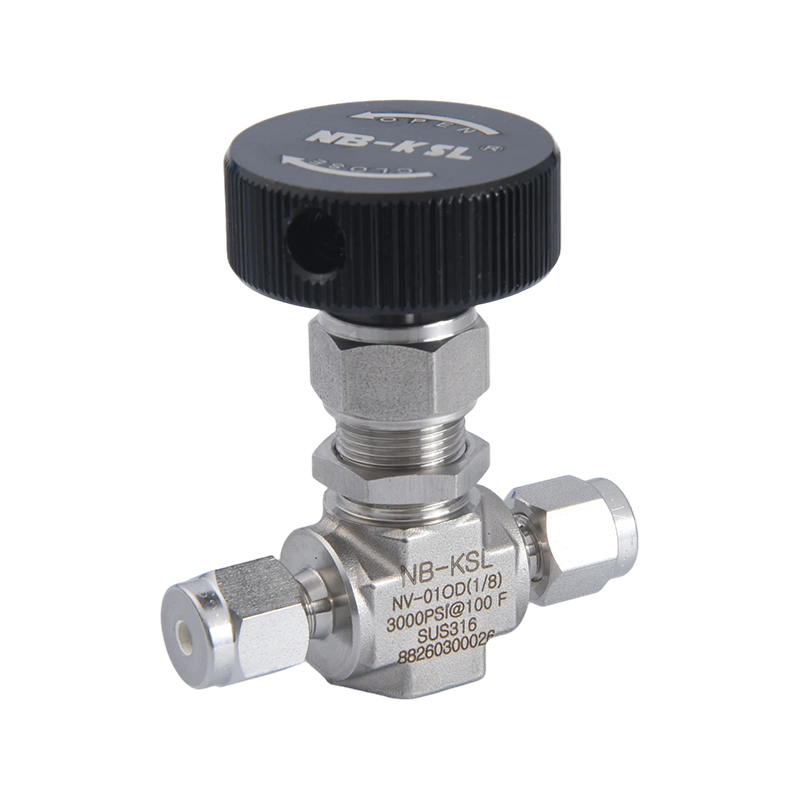

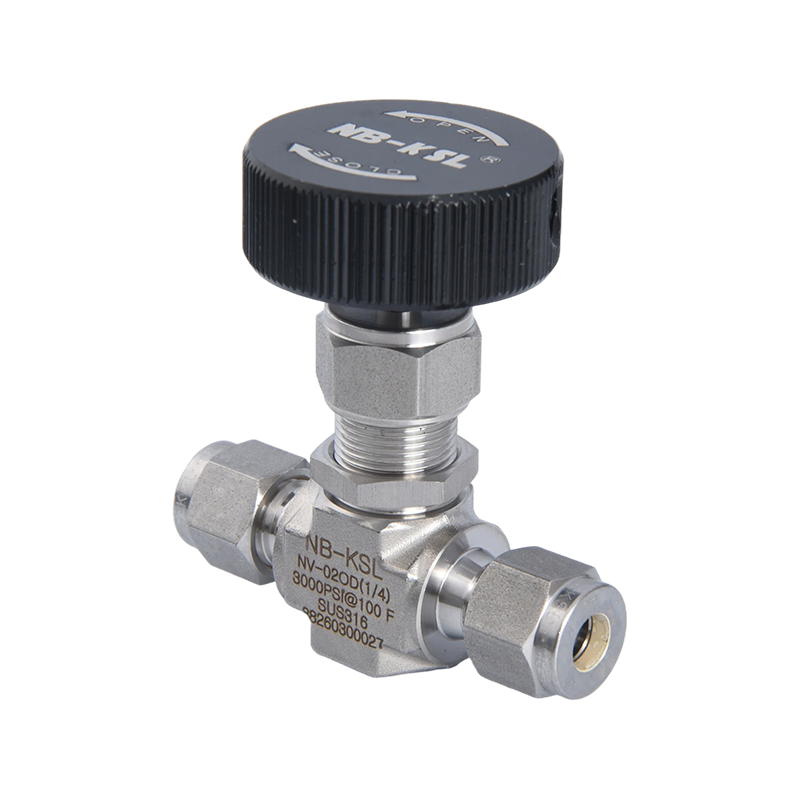

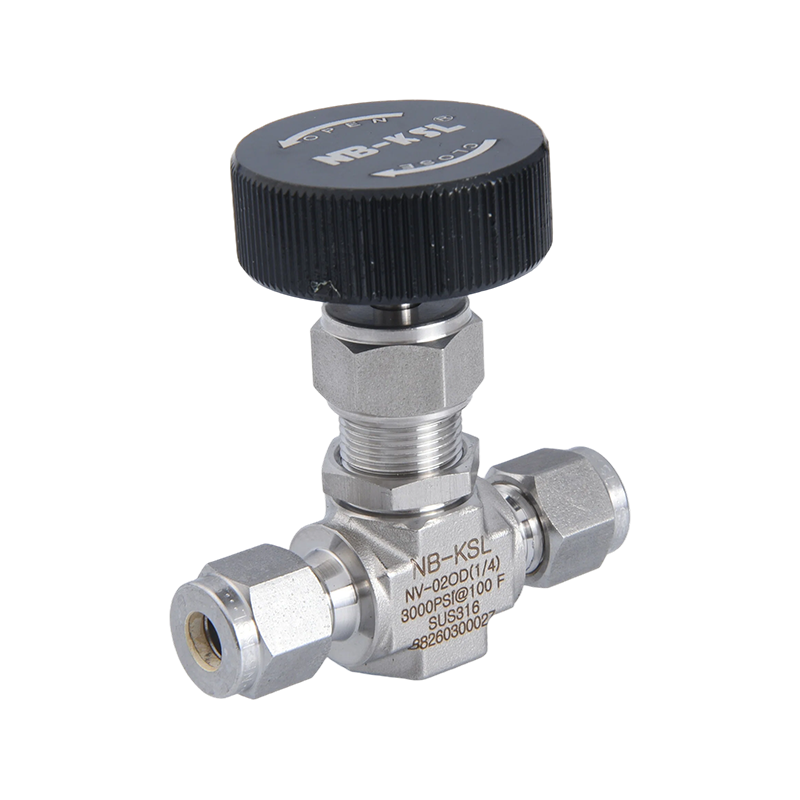

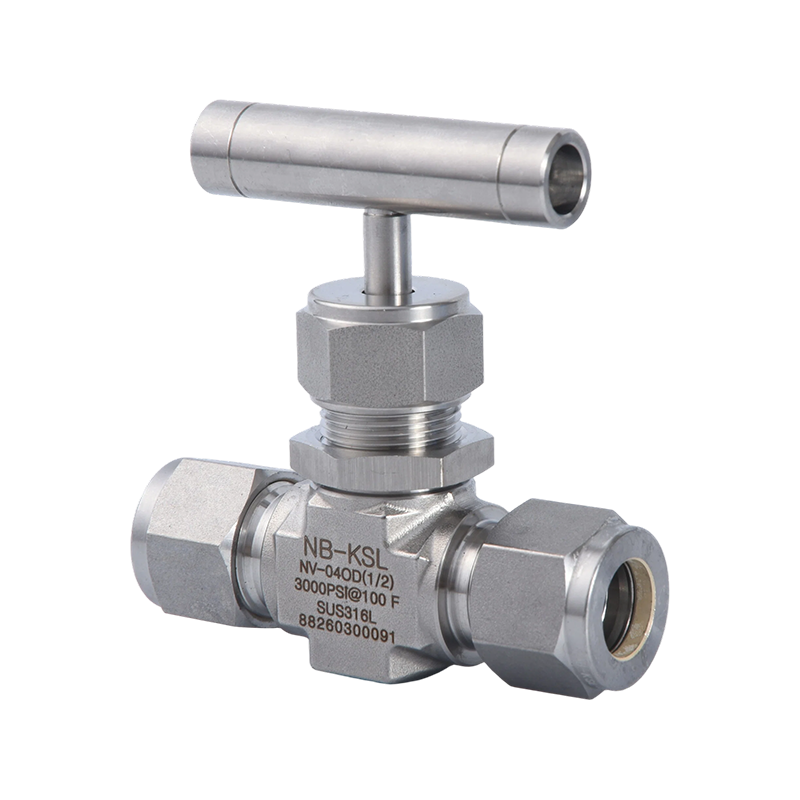

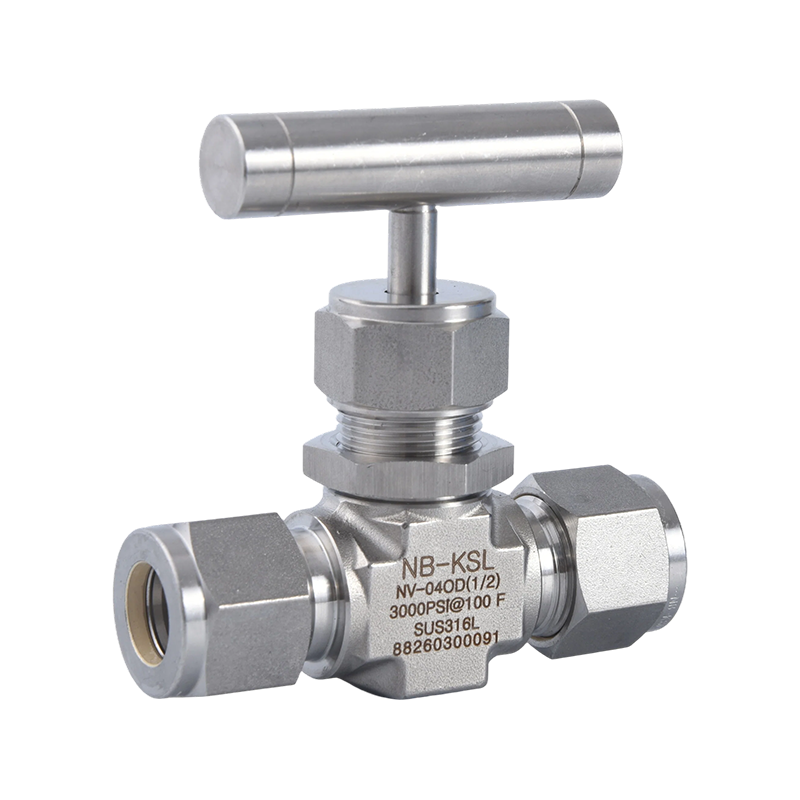

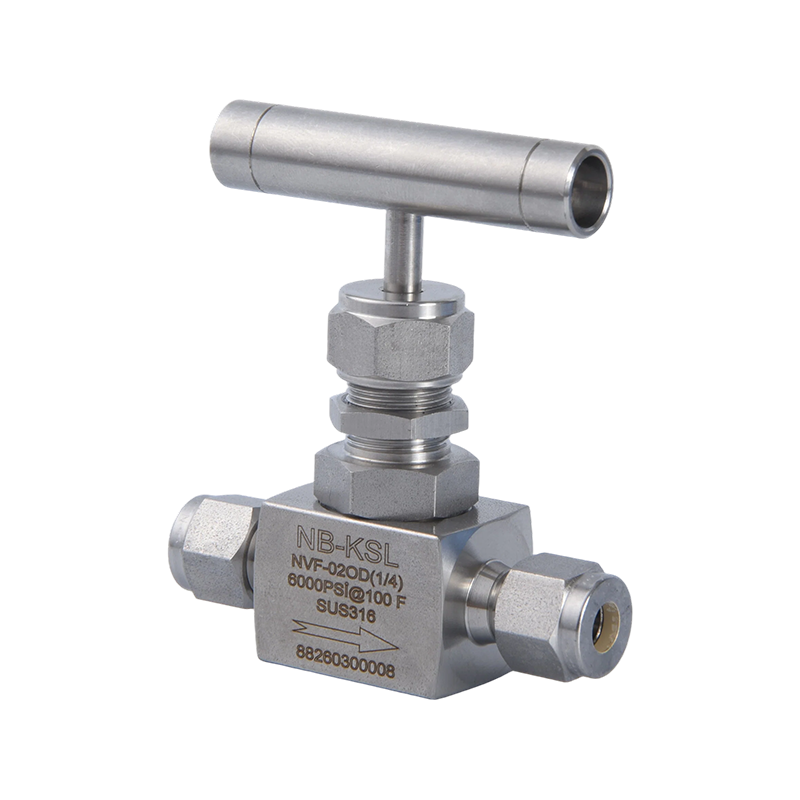

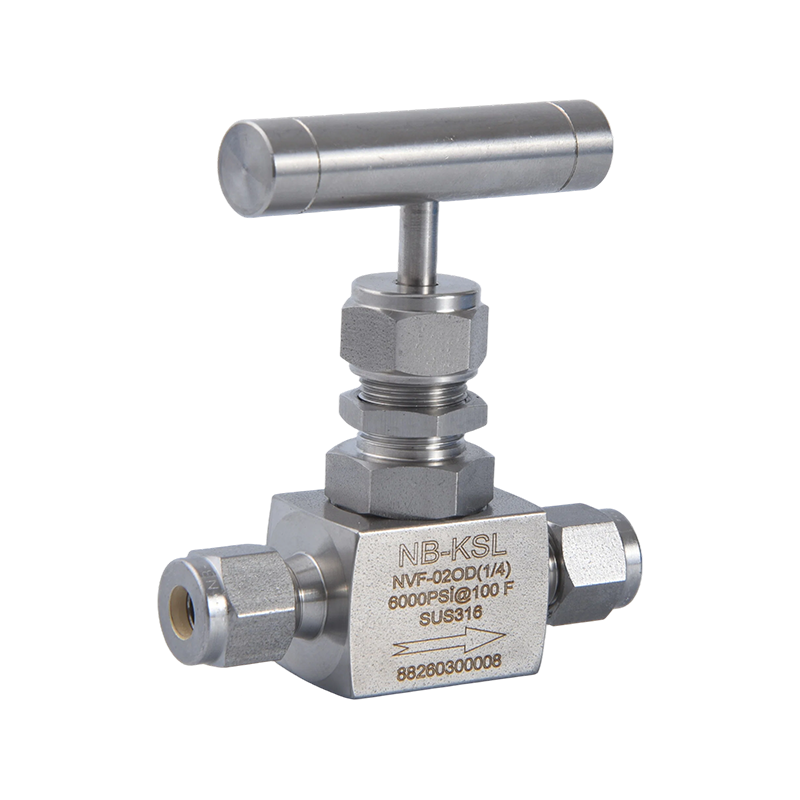

316L Acus valvulae immaculatae ferro Habes mitram

Features
Pressura laborat usque ad 10.000psig(689bar).
Temperatura rating ab -65F ad 450°F(-54℃ ad 232°C) cum vexillum PTFE sarcina, et usque ad 1200F(648°℃) cum Grafoil sarcina libitum.
Corpus materialium in 316SS, Carbon Ferro et Admisce 400(Monel).
Pressura laborat usque ad 10.000psig(689bar).
C% officina tesled.

  • Descriptio
  • Contact Us

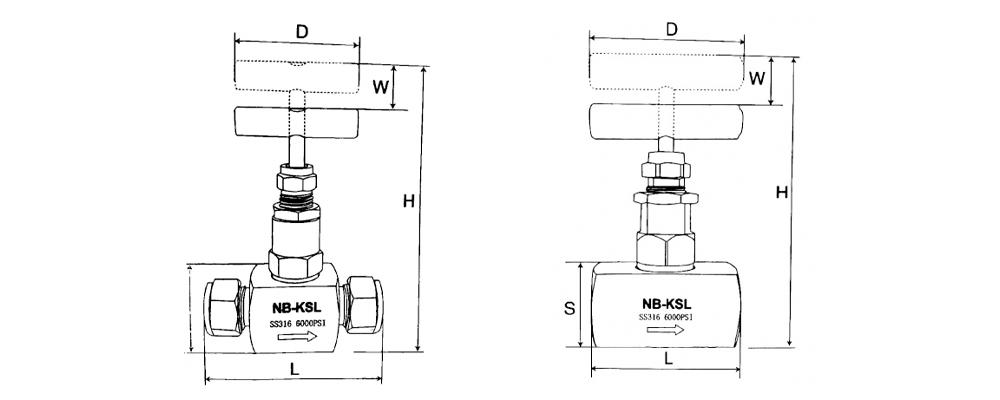

NVF Praesent Connector Pin Valve Dimension Table

Ordinis Model

Magnitudo

D

D1

L

H

S

W

NVF-02OD

1/4LOK

55

3

65

74

22

4

NVF-03OD

3/8LOK

55

5

65

74

22

4

NVF-04OD

1/2LOK

55

6

77

96

28

5

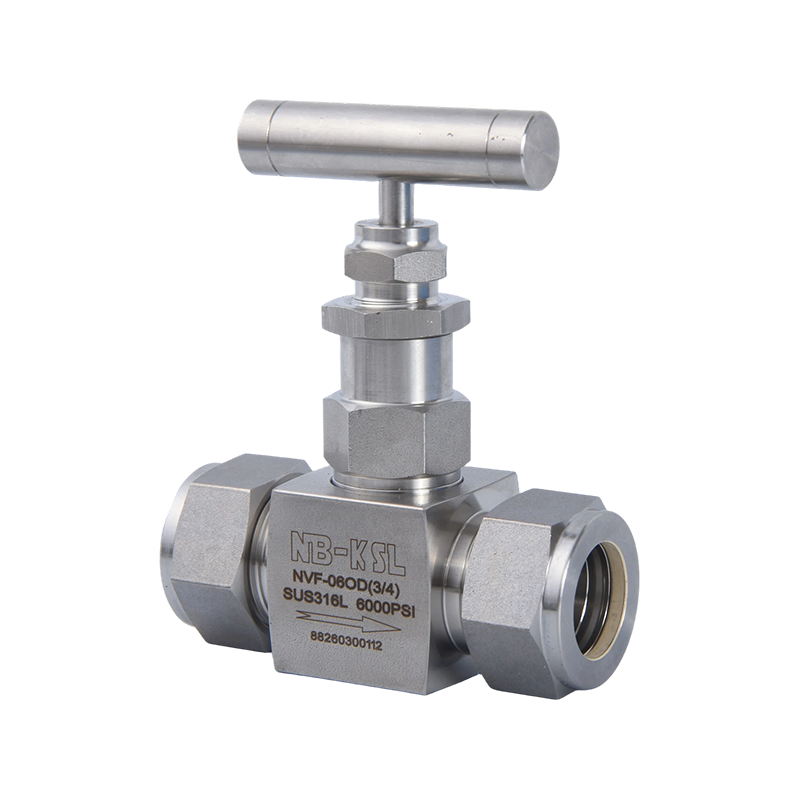

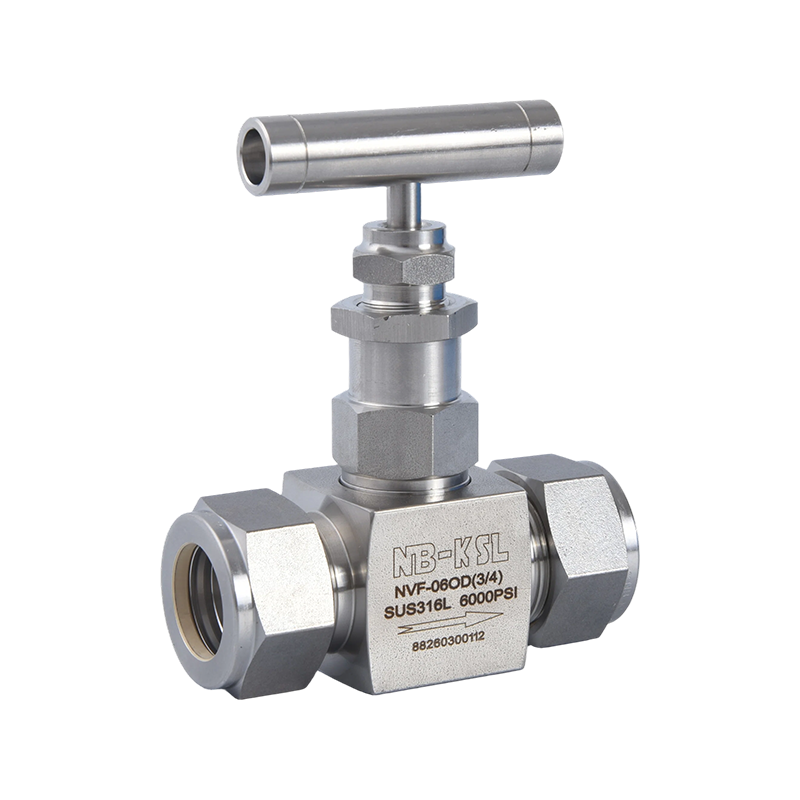

NVF-06OD

3/4LOK

55

7

77

96

28

5

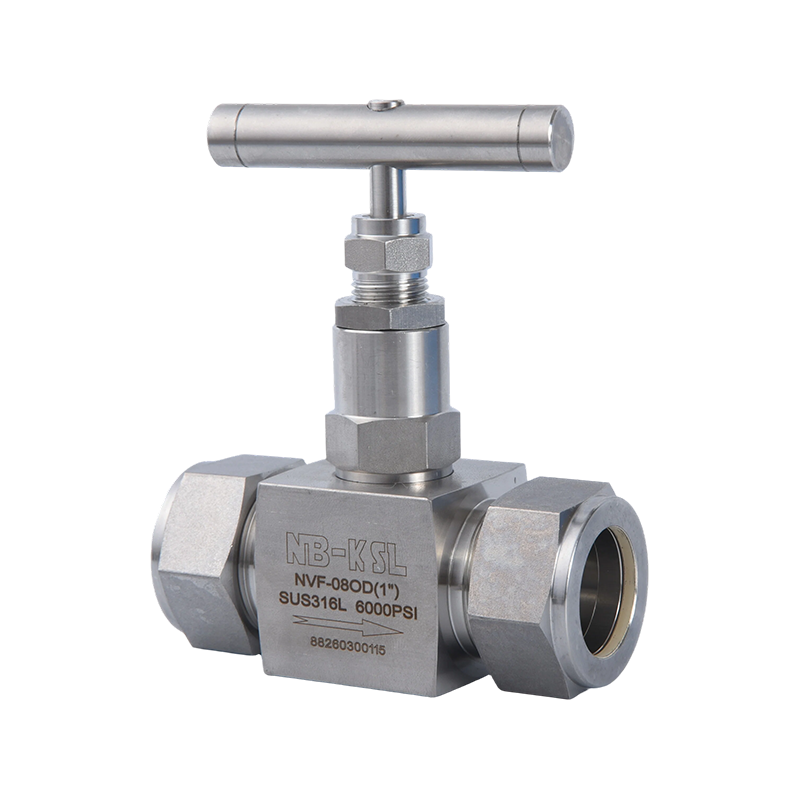

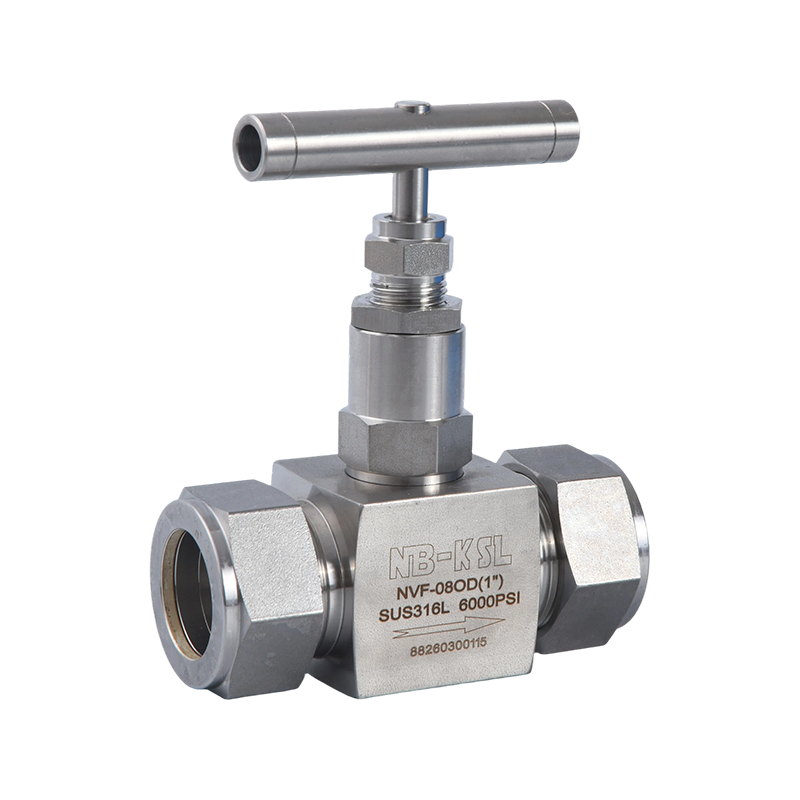

NVF-08OD

1"LOK

75

10

96

119

40

7

NVF-6OD

6mmLOK

55

3

65

74

22

4

NVF-8OD

8mmLOK

55

4

65

74

22

4

NVF-10OD

10mmLOK

55

5

65

74

22

4

NVF-12OD

12mmLOK

55

6

77

96

28

5

NVF-14OD

14mmLOK

55

7

77

96

28

5

NVF-16OD

16mmLOK

55

7

77

96

28

5

NVF-18OD

18mmLOK

55

7

77

96

28

5

NVF-20OD

20mmLOK

75

10

92

117

38

7

NVF-22OD

22mmLOK

75

10

92

117

38

7

NVF-25OD

25mmLOK

75

10

96

119

40

7

NVF Threaded Connection Acus Valvae Dimensiones Tabula

Ordinis Model

P

D

D1

L

H

S

W

NVF-02F

1/4

55

5

55

74

22

4

NVF-02M

1/4

55

5

55

74

22

4

NVF-03F

3/8

55

5

55

74

22

4

NVF-03M

3/8

55

5

55

74

22

4

NVF-04F

1/2

55

6

65

96

28

5

NVF-04M

1/2

55

6

65

96

28

5

NVF-06F

3/4

75

10

71

117

38

7

NVF-08F

1"

75

10

71

119

40

7


NVF Screw Type Acus Valvae externae Dimensiones Tabula

Ordinis Model

P

D

D1

L

H

S

W

NVF-10W

10mm

55

5

108

74

22

4

NVF-12W

12mm

55

6

122

96

28

5

NVF-14W

14mm

55

6

122

96

28

5

Supra magnitudinem data est solum referat. Mutationes nullae separatim notificabuntur. Si specificationes non indicantur, interroga apud officinam pro css.
