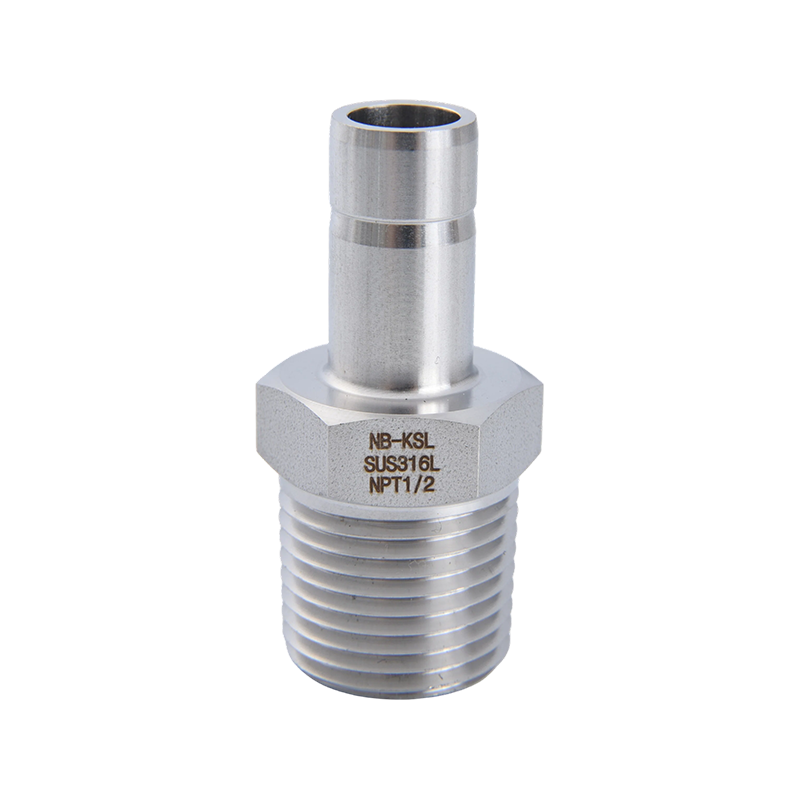

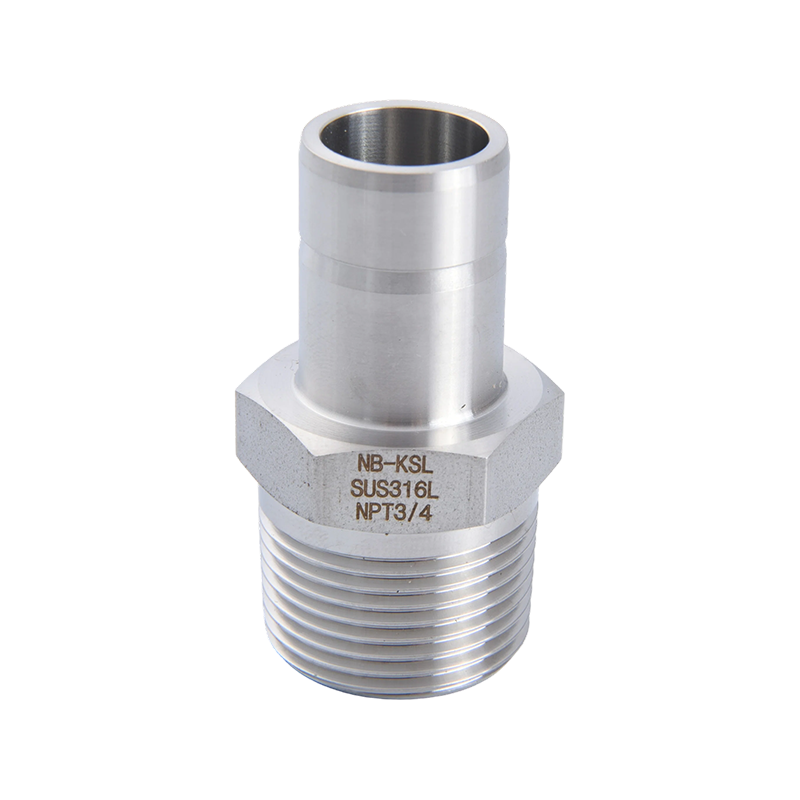

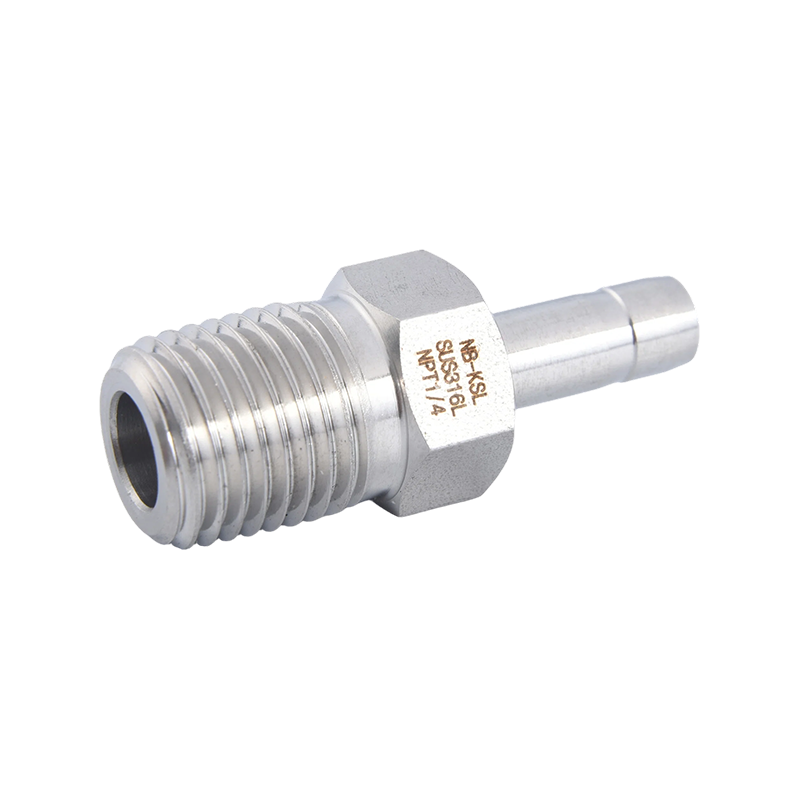

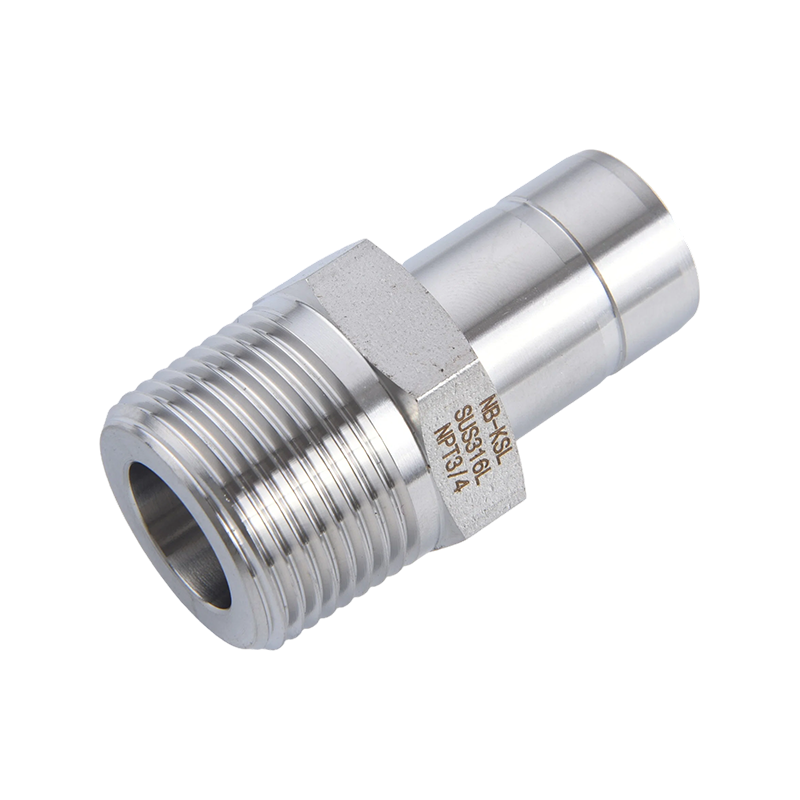

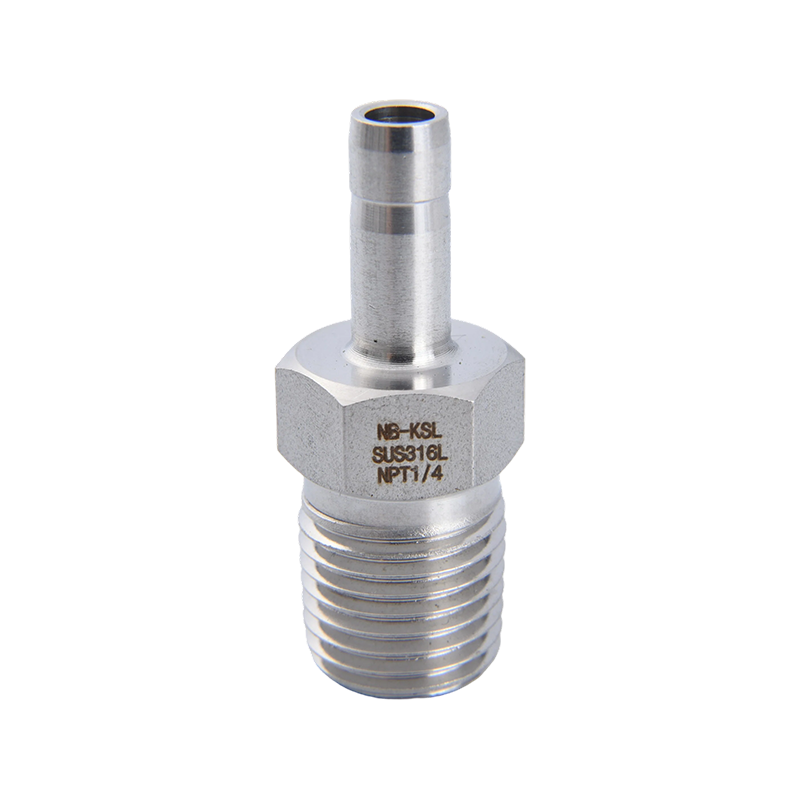

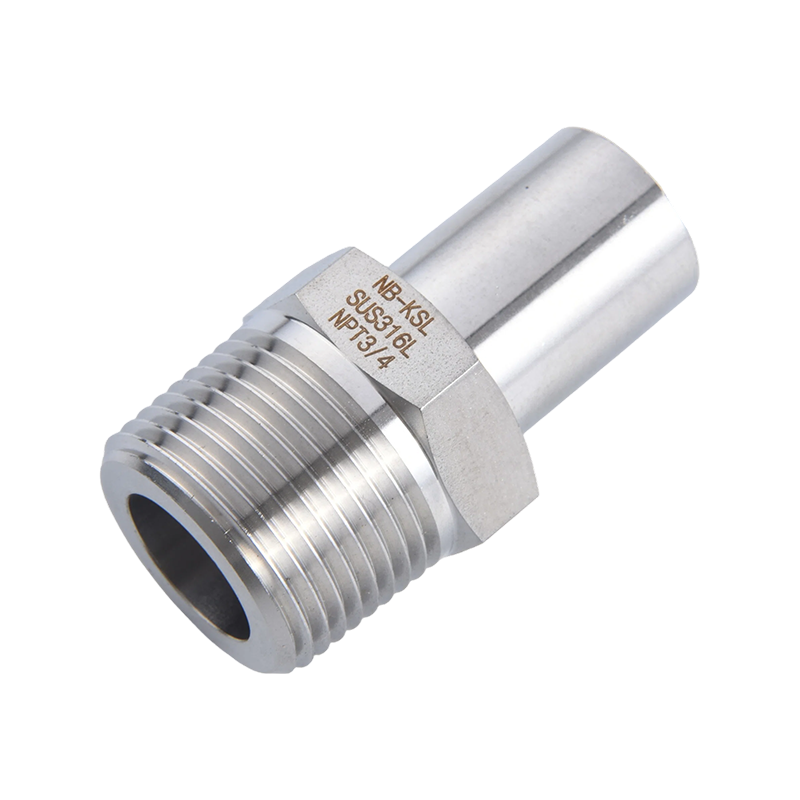

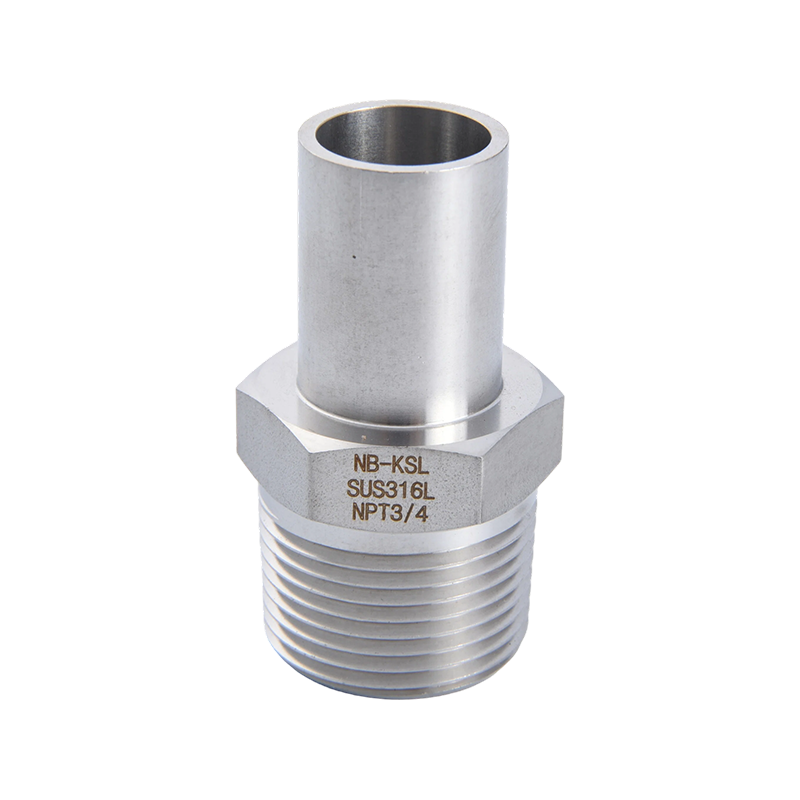

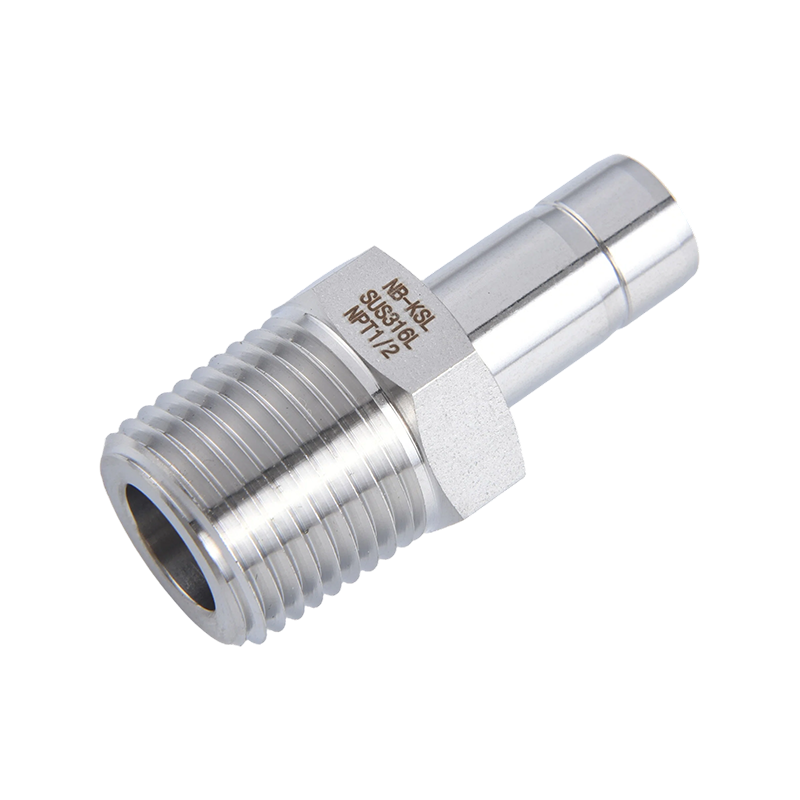

316L Steel Pipe ad Pipe Thread adaptor

316L Chalybea Pipe ad Pipe Thread adaptor est summus effectus fistulae connectoris late usus in chemicis, pharmaceuticis, cibi processui, oleo, gasi naturali, marinis curatione, et summus temperatus, ambitus mordax valde. Secure coniungit duas fistulas diversarum vel diametri per fila eadem, qua salvam onerariam humorum vel vaporum conectit. In plantis chemicis et refineriis, 316L Filum adaptoris acidum et alcali solutiones, solventes, et altum temperamentum corrosivum instrumentorum, ad diuturnum tempus stabilis operationis systematis pipelini praestandum, adhiberi possunt. In cibo processus et industriae pharmaceuticae, ubi valetudinis signa sunt altissima, 316L materia noxia substantias non dimittit, et superficies eius lenis incrementum microbialem minuit. Convenit etiam ad gasi pressurae altae et vecturae liquefacti gasi: nexus staminea certa est, effluxus probatio, et pressurae fluctuationes et mutationes temperaturae sustinere possunt.

  • Descriptio
  • Contact Us

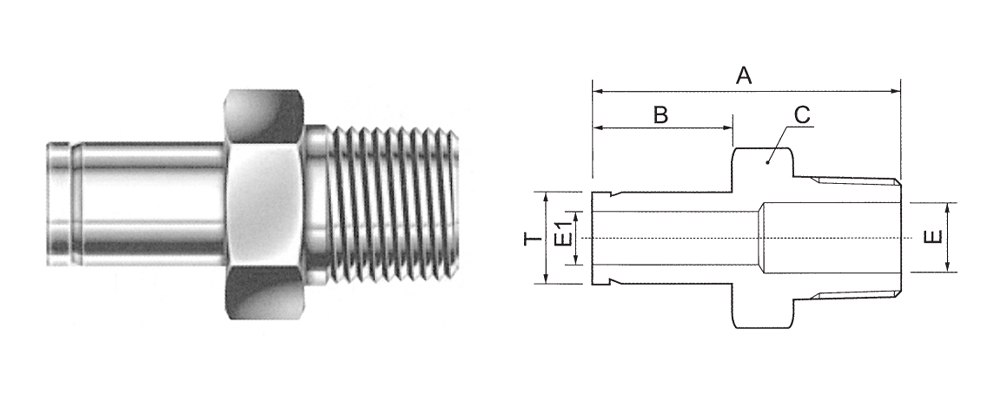

Masculum, ADAPTER/Tube

Portum femininum PT (NPT) filo coniungit fractum NB-KSL

CATALOGUS NUMBER

T TUBE O.D.

PT-NPT FEMINA TUBA MENSURA

A

B

C

E

E1

TAM-6-1

6

1/8

32.8

15.7

12

4.6

4.6

TAM-6-2

6

1/4

38.1

15.7

14

7.1

4.6

TAM-6-4

6

1/2

43.4

15.7

22

11.9

4.6

TAM-8-2

8

1/4

39.1

16.5

14

6.3

6.3

TAM-10-2

10

1/4

39.9

17.6

14

7.1

7.1

TAM-10-3

10

3/8

40.6

17.6

17

9.5

7.1

TAM-10-4

10

1/2

43.4

17.6

22

11.9

7.1

TAM-12-2

12

1/4

44.5

23.2

14

7.1

9.5

TAM-12-3

12

3/8

43.7

23.2

17

9.5

9.5

TAM-12-4

12

1/2

50.5

23.2

22

11.9

9.5

TAM-14-4

14

1/2

50.5

24.7

22

11

11

TAM-16-4

16

1/2

50.5

24.7

22

11.9

11.9

TAM-18-4

18

1/2

52.3

24.7

22

11.9

14

TAM-18-6

18

3/4

52.3

24.7

27

14

14

TAM-25-4

25

1/2

57.9

30.7

27

11.9

19.6

TAM-256

25

3/4

57.9

30.7

27

15

19.6

TAM-25-8

25

1"

65.1

30.7

35

19.6

19.6

Omnes dimensiones in mulineribus sonis aliud specificatis, tantum ad neference saubjectum ad mutationem
