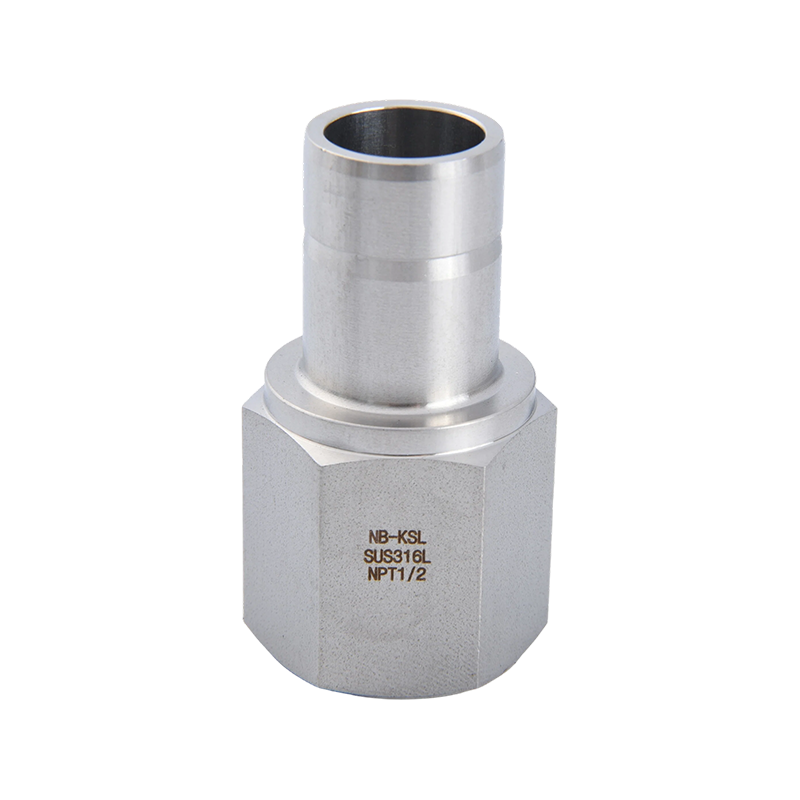

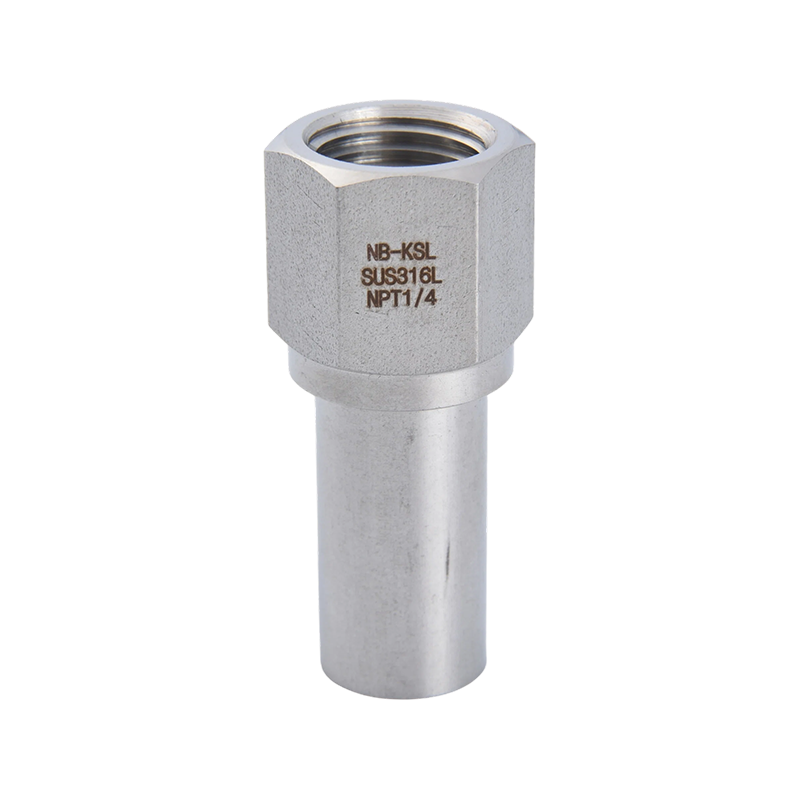

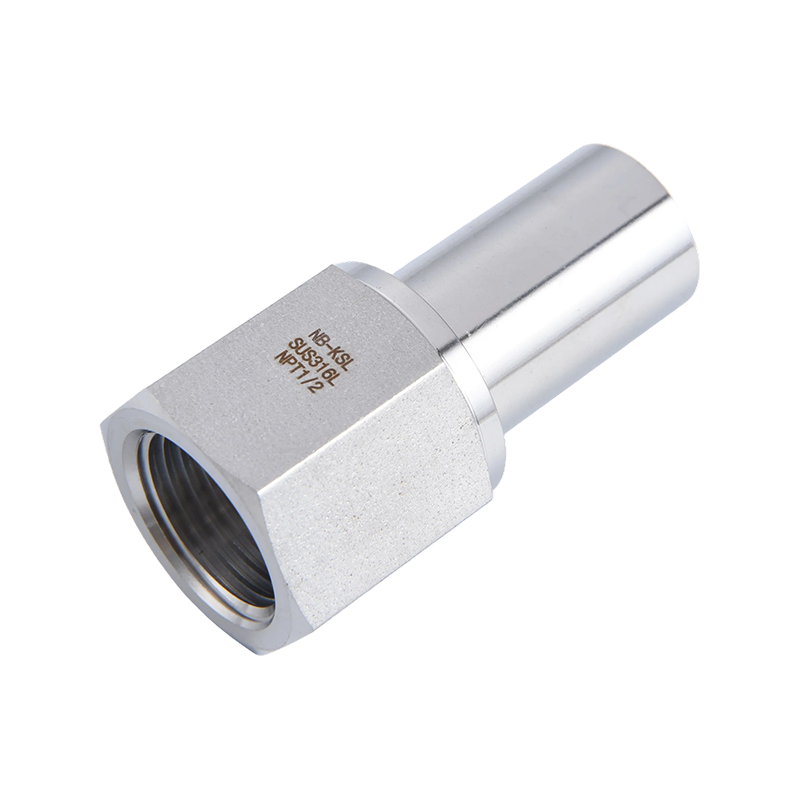

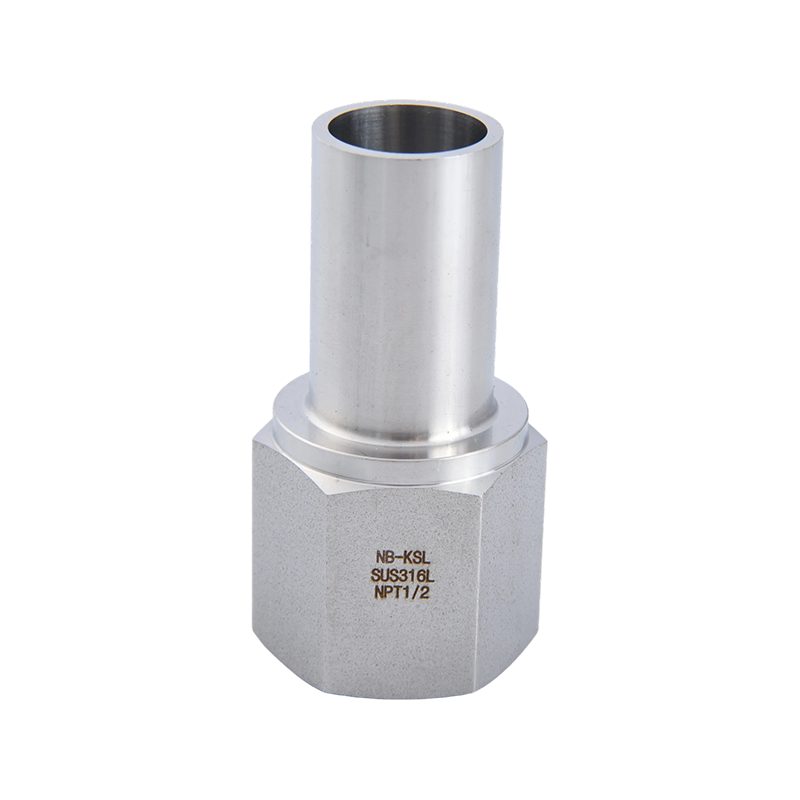

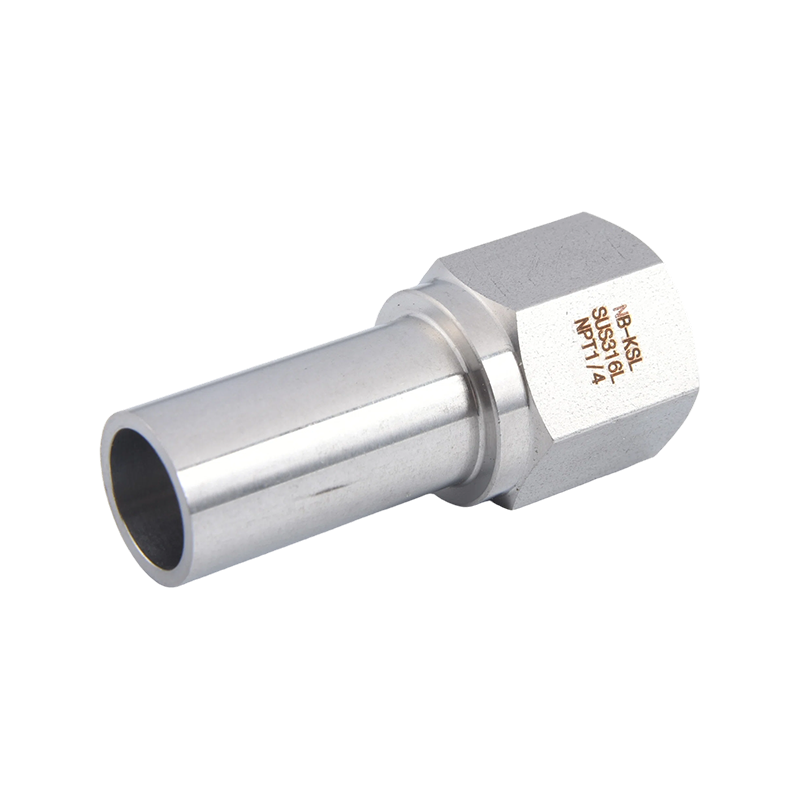

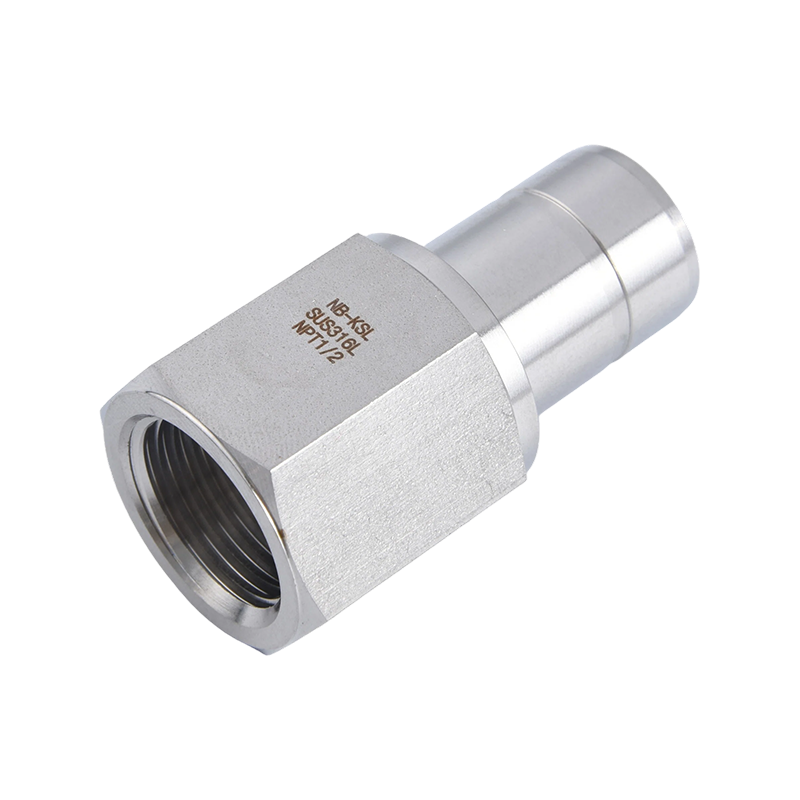

316L Steel Pipe ad Pipe Internum Thread adaptor

316L Chalybe Pipe immaculata ad Pipe Internum Thread adaptor est transitus conveniens ad systemata limbis connectendis. Praecipua eius structura ad duas fistulas vel portas armorum coniungere destinatur. nucleus huius producti in coniunctione coniunctionis eius methodus consistit: unus finis (vel utraque extremitas) cum globulo fibulato ordinatur ad fistulam glutino permanentem; intus autem machinatur cum staminibus internis vexillum ad connectendum valvulas, instrumenta, caerimonias, aut alia cum filis externis. Fluxus internus canali consilio lenis prioritizat transitus. Murus interior subtiliter politus est, asperitate superficiei typice moderata ad Ra ≤ 0.8µm vel etiam inferiorem (gradus sanitarius Ra ≤ 0.5μm attingere potest). Hoc non solum fluidum resistentiae coefficientis minuit, sed potius in superficiebus asperis retentio et depositio media impedit.

  • Descriptio
  • Contact Us

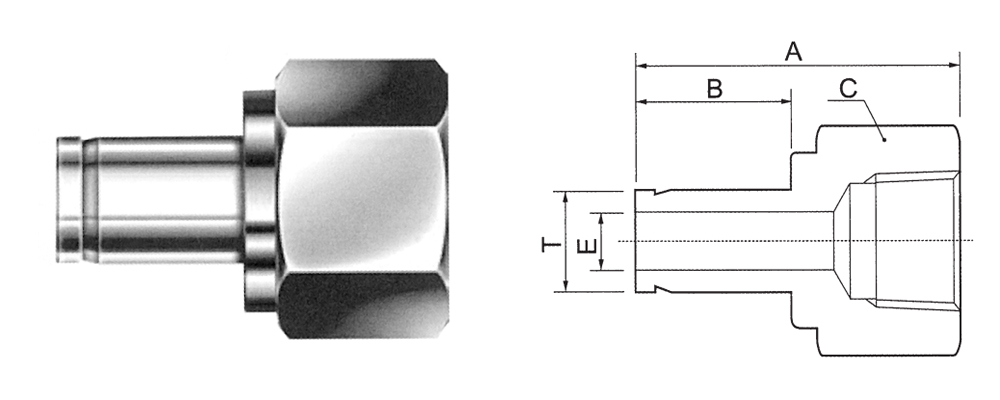

FEMINA nibh / Tube

Portum masculinum PT(NPT) connectit fractum NB-KSL

CATALOGUS NUMBER

T TUBE O.D.

PT-NPT FEMINA TUBA
MENSURA

A

B

C

E

TAF-02-1

1/4

1/8

33

15.7

14

4.4

TAF-02-2

1/4

1/4

37.1

15.7

19

4.4

TAF-02-3

1/4

3/8

39.5

15.7

22

4.4

TAF-02-4

1/4

1/2

45.5

15.7

27

4.4

TAF-03-1

3/8

1/8

34.3

17.6

14

7.1

TAF-03-2

3/8

1/4

38.1

17.6

19

7.1

TAF-03-3

3/8

3/8

40.4

17.6

22

7.1

TAF-03-4

3/8

1/2

46.7

17.6

27

7.1

TAF-04-2

1/2

1/4

43.4

23.2

19

9.9

TAF-04-3

1/2

3/8

45.5

23.2

22

9.9

TAF-04-4

1/2

1/2

52.3

23.2

27

9.9

TAF-06-4

3/4

1/2

53.8

24.7

27

15

TAF-01-6

3/4

3/4

54.9

24.7

32

15

TAF-06-8

3/4

1"

58.4

24.7

41

15

TAF-08-4

1"

1/2

60.7

30.7

27

18

TAF-08-8

1"

1"

64.2

30.7

41

19.6


Portus metricus connectit NB-KSL cum masculino PT (NPT) filo

TAF-6-1 6 1/8 33 15.7 14 4.4
TAF-6-2 6 1/4 37.1 15.7 19 4.4
TAF-6-3 6 3/8 39.5 15.7 22 4.4
TAF-8-2 8 1/4 37.6 16.5 19 6
TAF-8-3 8 3/8 39.5 16.5 22 6
TAF-10-2 10 1/4 38.1 17.6 19 7.1
TAF-10-3 10 3/8 40.1 17.6 22 7.1
TAF-10-4 10 1/2 46.5 17.6 27 7.1
TAF-12-2 12 1/4 43.4 23.2 19 9.1
TAF-12-3 12 3/8 45.5 23.2 22 9.1
TAF-12-4 12 1/2 52.3 23.2 27 9.1
TAF-18-4 18 1/2 54.8 24.7 27 14

Omnes dimensiones in mm, nisi aliud certum est, solum ad relationem subiecti mutabilitatis
