316L Cogo pressio apta METIOR

Home / Products / Diver Tube Fittings / Tubus ad feminam Pipe / 316L Cogo pressio apta METIOR

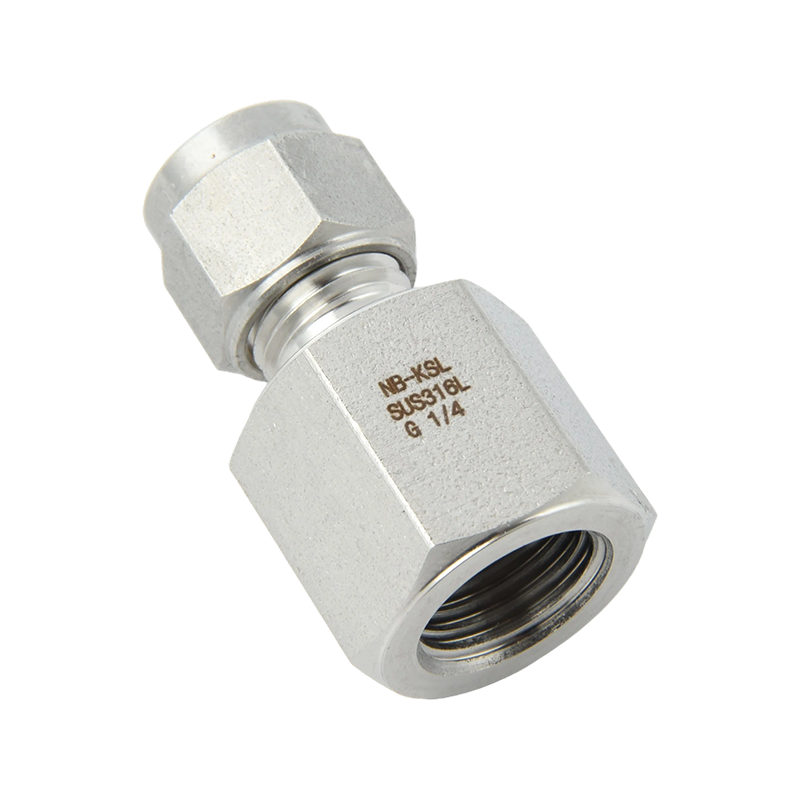

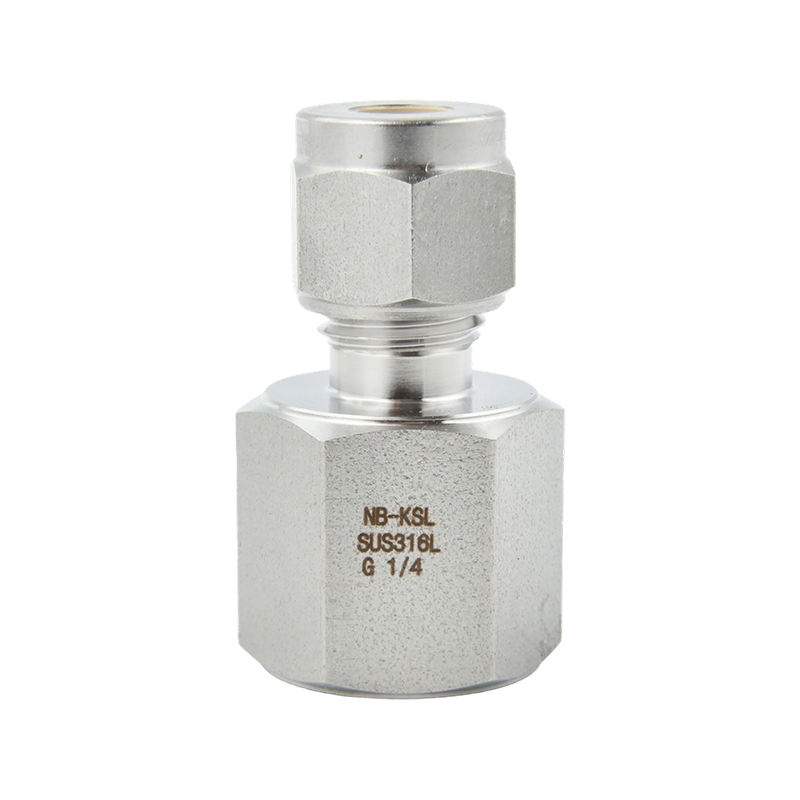

316L Cogo pressio apta METIOR

Speciatim ordinatur ad pressionem integrandam gauges, transmitters, aliaque instrumenta mensurandi in systemata fumantia, pressionis haec iunctio (etiam notae coniecturae adaptor) criticam coniunctionem habet. Artificium ex 316L summus puritatis intemeratae chalybs, est certa nexus inter praecisionem instrumentorum et pressionis altae Tubingae.

Core Product Commoda

Instrument-Grade Subtilitas Opportunus:
Finis filamentorum femina optimized est pro pressione interfaciendi coniecturam (ut G/Parallel vel filis NPT). Saepe funditus plani designat consilium ad lavatores obsignandi accommodandi, ut facile coniecturam dirigat ac sigillum strictum effluat.

Superior Vibratio et Pulsatio Dampening:
Duplex ferrule mechanica technologia densis efficaciter vibrationes mechanicas et pressiones vagis intra lineam concipit. Hoc coniecturam impedit quominus laxitas vel mensurae errorum vibrationis causatorum, signanter extendens vitam instrumentorum sensibilium.

Ultima 316L Corrosio Repugnantiae:
316L Humilis carbonis materia optimam repugnantiam praebet ad impetum pituitae et chemicae. Summus munditia interna gerebat ne particulae cumulum, quae alias elementa sentiendi instrumenti contaminare posset.

Summus Impetus Salutis et Integritatis;
Cum consilio pressionis aestimationem usque ad 6000 psig, corpus unum membrum fictum marginem altum praebet. Firmat sigillum airtight etiam sub condicionibus pressuris, ne lacus instrumentorum periculorum.

Contact Us Contact Us
PREV：316L Compressio Steel decens filo interni connector DEINDE：316L Compressio Steel decorum filum internum per laminam connector
  • Descriptio
  • Contact Us

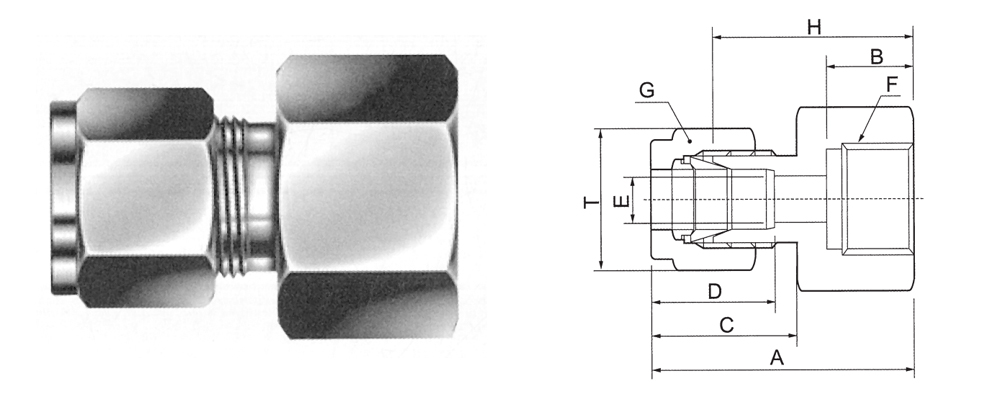

(METRIC) Tubus metricus connectit cum ISO filo parallelo (METRIC)

CATALOGUS NUMBER

T. TUBE O.D.

R(PF)
FEMINA
CANALIS MENSURA

A

B

D

E

F

G

H

FCG-3-2G

3

1/8

34

14

13.5

2.4

19

12

27

FCG-6-2G

6

1/4

36.2

14

15.8

4.8

19

14

28.4

FCG-6-3G

6

3/8

38

15

15.8

4.8

22

14

30.2

FCG-6-4G

6

1/2

40.9

19

15.8

4.8

27

14

33.1

FCG-8-2G

8

1/4

38.7

14

16.7

5.5

19

16

31

FCG-8-3G

8

3/8

38.7

15

16.7

6.4

22

16

31

FCG-8-4G

8

1/2

43.5

20

16.7

6.4

27

16

35.8

FCG-10-2G

10

1/4

39.4

14

19.6

5.5

19

19

31.8

FCG-10-3G

10

3/8

39.4

15

19.6

6.5

22

19

31.8

FCG-10-4G

10

1/2

44.2

19

19.6

7

27

19

36.6

FCG-12-2G

12

1/4

42.6

14

23.8

5.5

22

22

31.8

FCG-12-3G

12

3/8

42.6

15

23.8

6.5

22

22

31.8

FCG-12-4G

12

1/2

48.9

19

23.8

7

27

22

38.1

FCG-20-4G

20

1/2

54.7

19

25.5

7

30

32

44.2

FCG-22-4G

20

1/2

54.7

19

25.5

7

30

32

44.2


(FRACTIONAL) Coniunge tubum metricum cum ISO filo parallelo (membrana)

FCG-02-1G

1/4

1/8

31.7

10

15.8

4.8

14

14

23.9

FCG-02-2G

1/4

1/4

36.2

14

15.8

4.8

19

14

28.4

FCG-02-3G

1/4

3/8

38

15

15.8

4.8

22

14

30.2

FCG-02-4G

1/4

1/2

40.9

19

15.8

4.8

27

14

33.1

FCG-03-2G

3/8

1/4

39.4

14

19.6

5.5

19

17

31.8

FCG-03-3G

3/8

3/8

44.2

15

19.6

6.5

22

17

36.6

FCG-03-4G

3/8

1/2

44.2

19

19.6

7

27

17

36.6

FCG-04-2G

1/2

1/4

42

14

23.4

5.5

22

22

31.8

FCG-04-3G

1/2

3/8

42

15

23.4

6.5

24

22

31.8

FCG-04-4G

1/2

1/2

48.3

19

23.4

7

27

22

38.1


(FRACTIONAL) Coniunge tubum metricum cum ISO filo parallelo (membrana)

FC-3-M14*1.5

3

M14x1.5

34

15

13.5

2.4

19

12

27

FC-6-M14*1.5

6

M14x1.5

38

15

15.8

4.8

19

14

30.2

FC-8-M14*1.5

8

M14x1.5

37.8

15

16.7

5.5

19

16

31

FC-10-M14*1.5

10

M14x1.5

39.4

15

19.6

5.5

19

19

31.8

FC-12-M14*1.5

12

M14x1.5

42.6

15

23.8

5.5

22

22

31.8

FC-6-M16*1.5

6

M16x1.5

38

16

15.8

6.5

22

14

30.2

FC-8-M16*1.5

8

M16x1.5

38.7

16

16.7

6.4

22

16

31

FC-10-M16*1.5

10

M16x1.5

39.4

16

19.6

6.4

22

19

31.8

FC-12-M16*1.5

12

M16x1.5

42.6

16

23.8

6.5

22

22

31.8

FC-8-M18*1.5

8

M18x1.5

41.3

16

16.7

6.4

24

16

33.6

FC-12-M18*1.5

12

M18x1.5

44.4

16

23.8

7

24

22

33.6

FC-6-M20*1.5

6

M20x1.5

40.3

16

15.8

4.8

27

14

32.5

FC-8-M20*1.5

8

M20x1.5

41.2

16

16.7

6.4

27

16

33.5

FC-10-M20*1.5

10

M20x1.5

42.1

16

19.6

7

27

19

34.5

FC-12-M20*1.5

12

M20x1.5

45.3

16

23.8

7

27

22

34.5
